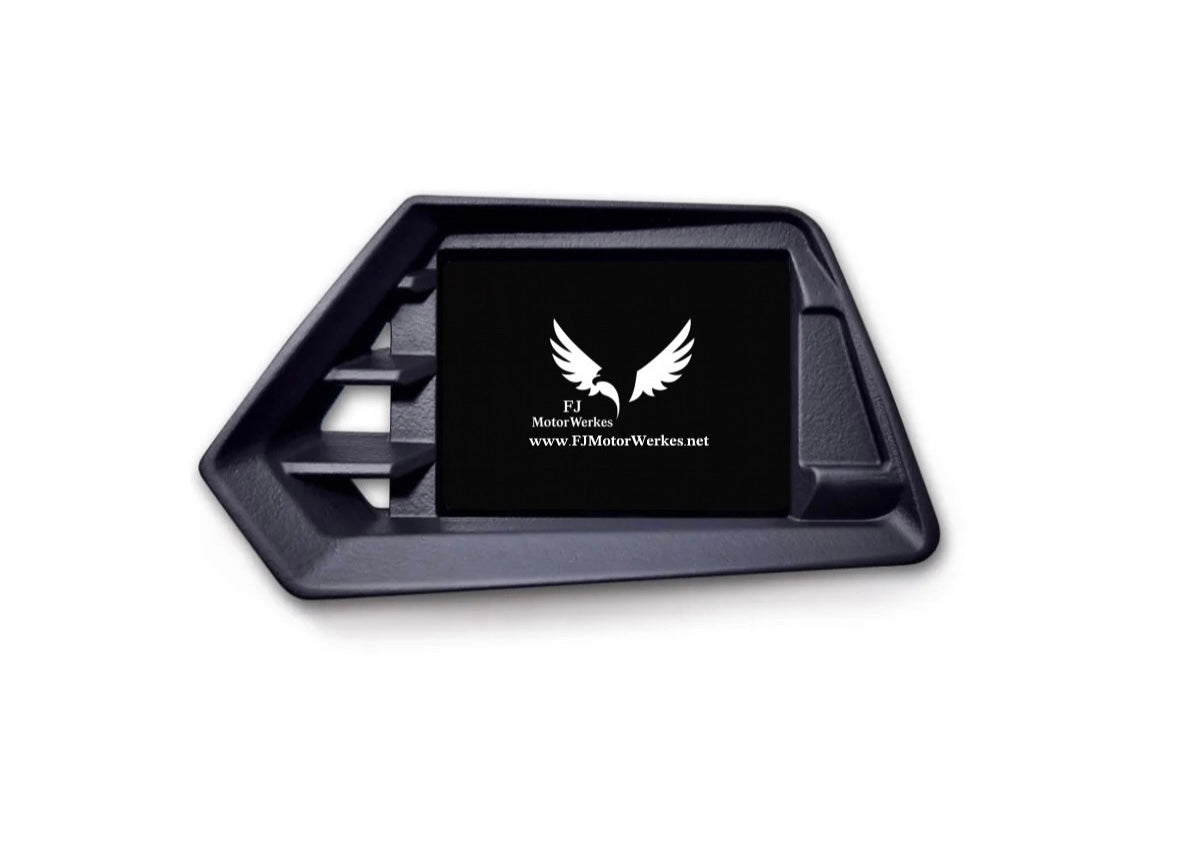

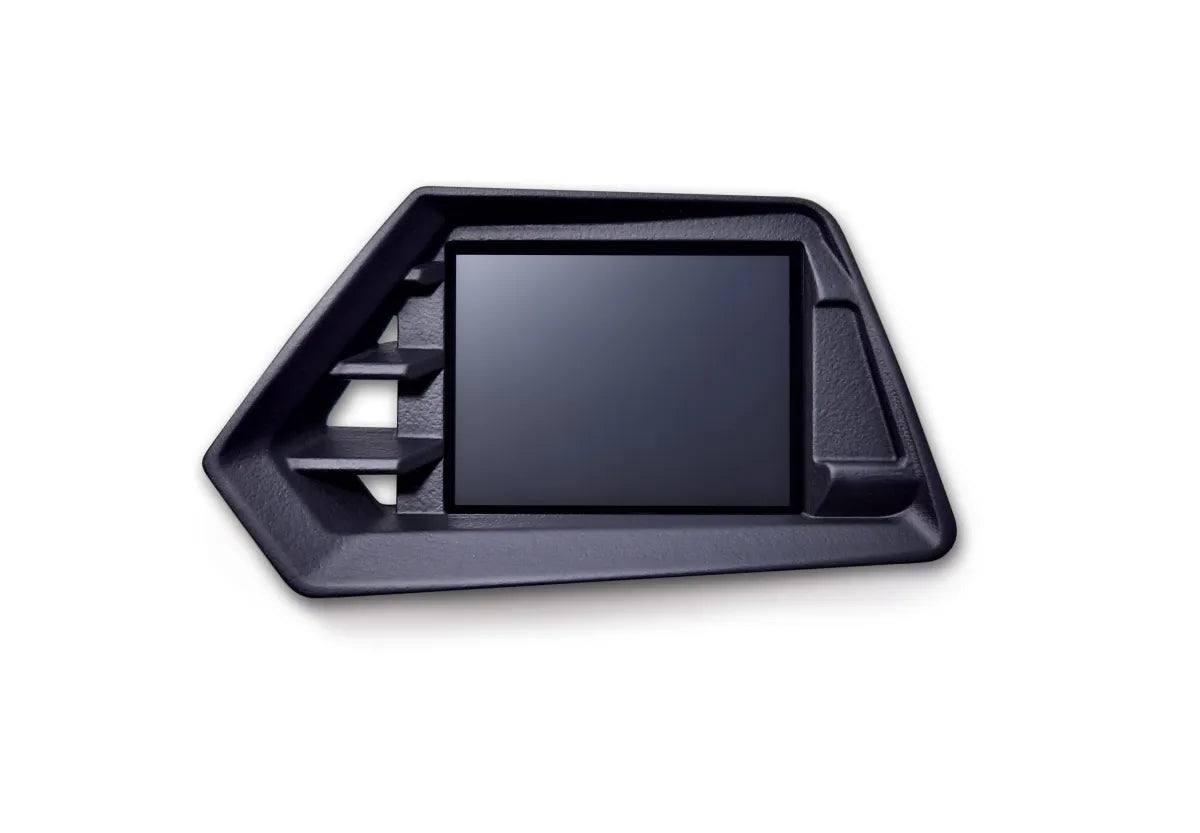

CanChecked GEN2 Multifunction Display – BMW G8X (Pre-LCI)
Official UK Dealer – FJ MotorWerkes
The brand-new second generation (GEN2) CanChecked multifunction display gives you in-depth, real-time vehicle data while fitting seamlessly into your pre-LCI BMW G8X’s driver-side air vent.
This display is not pre-assembled which makes it compatible with all BMW G20, G21, G22, G23, G42, G87, G81, G81, G82 & G83 vehicles (both LCI & pre-LCI).
Note: This version can retain ambient lighting on pre lci models. Non-assembled version means exist vent housing needs to be switched over, which fits both LCI & pre-LCI models.
What’s New in GEN2
- Improved graphics with better anti-aliasing
- Swipe navigation replaces touch-tip buttons
- More precise widget adjustments
- New warning pop-up functions
What is CanChecked? CanChecked is a leading brand of performance displays, gauges, software, and sensors, allowing you to visualise crucial engine data such as oil temperature, boost pressure, exhaust gas temperature, ethanol content (with sensor), and much more.
Data can be read via CAN Bus (depending on ECU compatibility) or additional analog sensors.
Key Features
- 3.2” capacitive touchscreen with vehicle-specific vent bracket
- Displays ECU data (adapter cable included)
- 8GB SD card storage (included)
- Up to 10 fully configurable pages
- Connection via OEM junction box in footwell (see install guide)
- 4 analog (0–5V) + 2 digital inputs for sensors (oil/fuel pressure, EGT, boost, etc.)
- Optional shift light function
- Performance meter (e.g., 100–200 km/h times)
- Adjustable min/max warning thresholds with pop-up alerts
- Auto-dimming screen brightness
Display & Widgets
- 10 pages, up to 17 widgets per page
- 10 widget types: digital, bar, speed, pointer, log, tableswitch, picture (SD card), number, circle display, Haldex
- Drag & drop widget arrangement
- Custom colour adjustments available
- Configure via DSS software (USB) or directly on-device

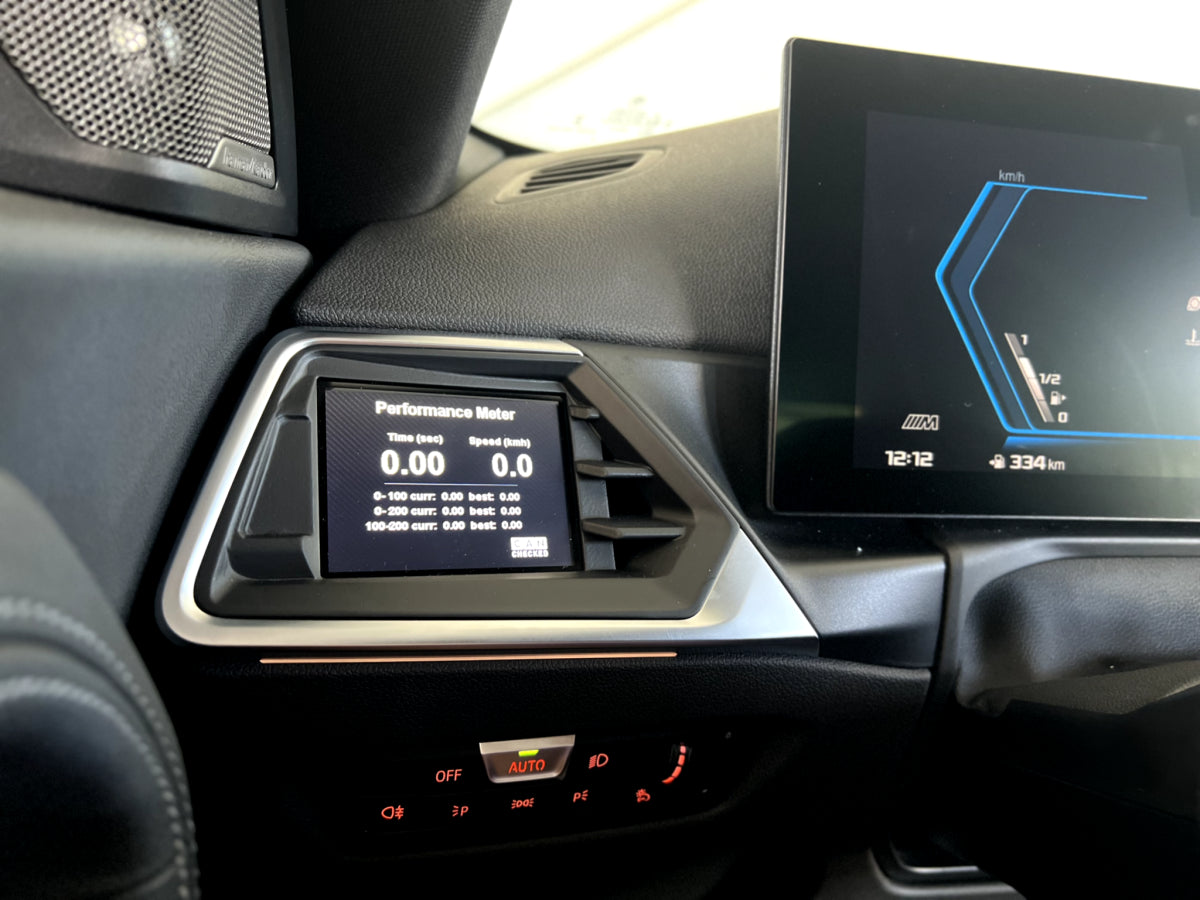

Performance Monitor
- High-speed CAN integration with up to 128 live vehicle sensors
- Swap sensors on the fly, set custom ranges & alerts via DSS
Diagnostics
- Swipe down from any screen to read & clear ECU fault codes in plain text
Data Logging
- Log instantly and save to internal SD card
Plug & Play Installation
- Precision-designed for perfect OEM-style integration
- Retains vent function
Expandable
- Monitor sensors & devices from other brands
- Future licences for Haldex control, WMI, ethanol fuel systems
Customisable Screens
- Comes preloaded with 6 dashboards (up to 10 possible)
- Fully customisable with DSS software & widget library
Optional Accessories
- Wide range of additional sensors (oil temp, water temp, boost, fuel pressure, etc.)
- Vehicle-specific cables & integrations
What’s in the Box
- CanChecked 3.2” GEN2 display
- BMW G8X vent pod bracket
- Vehicle-specific CAN connection cable
- Fixing screws
- 8GB micro SD card + adapter
- Quickstart guide
Supplied & supported by FJ MotorWerkes – official UK CanChecked dealer. We are also able to install for additional £120, Peterborough.
Installation manuals available via TurboZentrum or the CanChecked website.
